TM 9-2320-360-34-1
6-4. STARTER REPAIR (CONT)
NOTE
Four 1.5 in. (38 mm) pieces of
welding rod or similar material may
be used for guide pins.
(31)

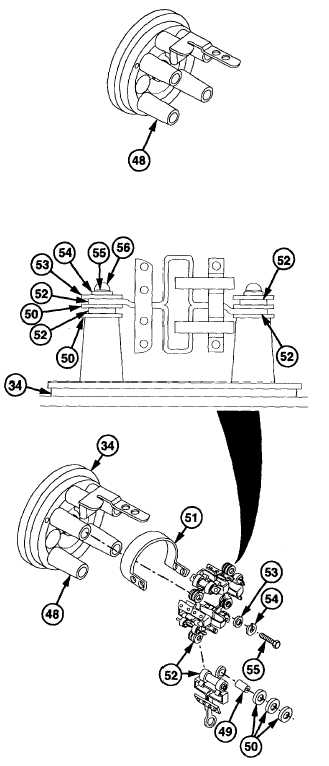

Insert four guide pins in mounting posts
(48).
NOTE
Insulation
bushings
must
pass
through insulation washers and sit
flush on mounting posts.
(32)
Install
insulation
bushing
(49)
and
insulation washers (50) on each of four
mounting posts (48).
NOTE
Align ground jumper tab with ground
stud tab.
(33)
Position
ground
jumper
(51)
on
commutator end housing (34).
NOTE
· Holes in brush holder must line up
with holes in ground stud and
jumper.
· Left mounting leg of brush holder
is higher than right mounting leg.
When
properly
installed,
left
mounting leg will overlap right
mounting leg of next brush holder.
(34)
Install brush holder (52), insulation washer
(50), and brush holder (52) on each of four
mounting posts (48).
(35)
Remove four guide pins from mounting
posts (48).
(36)
Install insulation washer (53), washer (54),
and new lockwasher (55) on each four
mounting posts (48) with screw (56).
6-40
|
