TM 9-2320-360-34-1
WARNING
Adhesive-sealant can burn easily,
can give off harmful vapors, and are
harmful to skin and clothing. To
avoid injury or death, keep away from
open fire and use in well-ventilated
area. If adhesive-sealant gets on skin
or clothing, wash immediately with
soap and water.
(23)
Coat
threads
of
screws
(30)
with
adhesive-sealant (Item 6, Appendix B).
(23.1)
Coat mating surface of nose housing (27)
with adhesive-sealant (Item 2.1, Appendix
B).

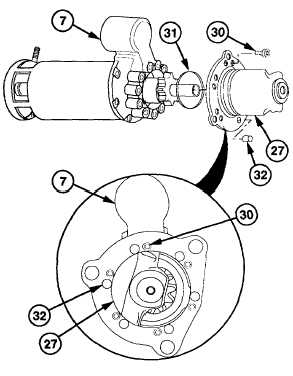

(24)
Install new preformed packing (31) and
nose housing (27) on shift housing (7) with
six screws (30).
(25)
Install six rubber plugs (32) in nose
housing (27).
NOTE
· Do step (26) if bushing was
removed.
· Hole in bushing must be aligned
with wick bore in nose housing.

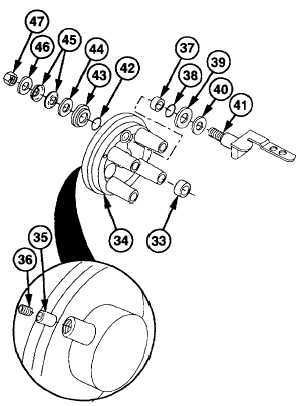

(26)
Install bushing (33) in commutator end
housing (34).
(27)
Soak wick (35) in lubricating gear oil.
(28)
Install
wick
(35)
and
plug
(36)
in
commutator end housing (34).
(29)
Install
insulation
bushing
(37),
new
preformed packing (38), plastic washer
(39), washer (40), and ground stud (41) in
commutator end housing (34).
NOTE
Tapered side of insulator goes on
first.
(30)
Position new preformed packings (42),
insulator (43), washer (44), two belleville
washers (45), washer (46), and nut (47)
on ground stud (41). Do not tighten.
Change 2 6-39
|
