TM 9-2320-360-34-1
(20)

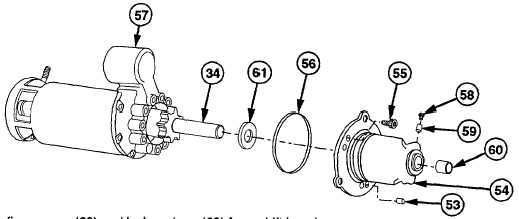

Remove six rubber plugs (53) from nose housing (54).
(21)
Remove six screws (55), nose housing (54), and preformed packing (56) from shift housing (57). Discard
preformed packing.
(22)
Remove plug (58) and wick (59) from nose housing (54).
NOTE
Do step (23) only if bushing fails inspection.
(23)
Remove bushing (60) from nose housing (54).
(24)
Remove thrust washer (61) from armature shaft (34).
(25)

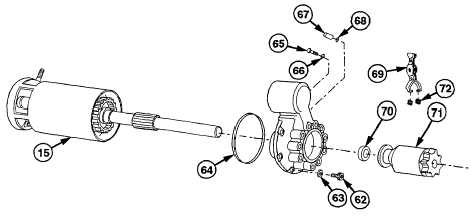

Remove five screws (62) and locKwashers (63) from shift housing (57). Discard lockwashers.
(26)
Remove shift housing (57) and preformed packing (64) from field ring (15). Discard preformed packing.
(27)
Remove screw (65), washer (66), shaft (67), and preformed packing (68) from shift housing (57). Discard
preformed packing.
(28)
Remove shift lever (69), brake washer (70), and drive assembly (71) from shift housing (57).
(29)
Remove two cams (72) from shift lever (69).
6-33
|
