TM 9-2320-360-34-1
(6)

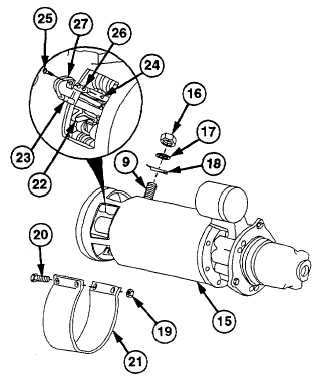

Remove nut (16), washer (17), and
insulator (18) from field coil stud (9).
(7)
Remove two nuts (19), screws (20), and
brush opening band (21) from field ring
(15).
NOTE
Refer to appendix C for fabrication of
wire hook.
(8)
Pull eight springs (22) upward and remove
eight brushes (23) from four brush holders
(24) using wire hook.
(9)
Remove eight screws (25), four lockplates
(26), and eight brush leads (27) from four
brush holders (24). Discard lockplates.
(10)

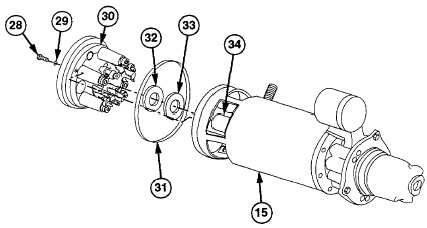

Remove four screws (28), lockwashers
(29), commutator end housing (30), and
preformed packing (31) from field ring
(15). Discard lockwashers and preformed
packing.
NOTE
Washers may be on armature or
commutator end housing.
(11)
Remove fiber washer (32) and thrust
washer (33) from armature shaft (34).
6-31
|
