TM 9-2320-360-34-1
6-4. STARTER REPAIR
This task covers
a. Disassembly
d. Assembly
b. Cleaning/Inspection
e. Follow-On Maintenance
c. Testing
Initial Setup:
Equipment Conditions
Materials/Parts (Cont)
Starter removed (TM 9-2320-360-20).
Cloth, Crocus (Item 16, Appendix B)
Grease, Automotive and Artillery (Item 32,
Tools and Specials Tools
Appendix B)
Tool Kit, Automotive Fuel and Electrical
Oil, Lubricating (Item 44, Appendix B)
System Repair (Item 199, Appendix E)
Oil, Lubricating Gear (Item 41, Appendix B)
Caliper, Venier (Item 16, Appendix E)
Solvent, Dry Cleaning (Item 54, Appendix B)
Caliper Set, Micrometer (Item 15, Appendix E)
Lockplates (4) (Item 104, Appendix F)
Compressor Unit, Air (Item 24, Appendix E)
Lockwashers (9) (Item 138, Appendix F)
Goggles, Industrial (Item 57, Appendix E)
Lockwashers (4) (Item 137, Appendix F)
Hook, Wire (Figure C-6, Appendix C)
Lockwasher (Item 135, Appendix F)
Multimeter (Item 98, Appendix E)
Lockwasher (Item 122, Appendix F)
Wrench Set, Impact (Item 228, Appendix E)
Packings, Preformed (2) (Item 168, Appendix F)
Wrench Set, Socket, 3/8 In. Drive (Item 232,
Packings, Preformed (2) (Item 193, Appendix F)
Appendix E)
Packing, Preformed (Item 192, Appendix F)
Wrench, Torque, 0-300 Lb-In. (Item 235,
Packing, Preformed (Item 194, Appendix F)
Appendix E)
Seal, Oil (Item 316, Appendix F)
Materials/Parts
Personnel Required
Adhesive-Sealant (Item 2.1, Appendix B)
MOS 63G
Adhesive-Sealant (Item 6, Appendix B)
Adhesive-Sealant (Item 10, Appendix B)
a.
Disassembly

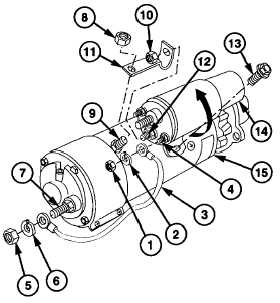

(1)
Remove nut (1), lockwasher (2), and
ground lead (3) from terminal no. 4 (4).
Discard lockwasher.
(2)
Remove nut (5), lockwasher (6), and
ground lead (3) from ground stud (7).
Discard lockwasher.
CAUTION
Use open-end wrench to hold bottom
nut while removing top nut. Failure
to comply may damage field coil.
(3)
Remove nut (8) from field coil stud (9).
(4)
Remove nut (10) and jumper strap (11)
from terminal no. 3 (12).
(5)
Remove two screws (13) and solenoid
(14) from field ring (15).
