TM 9-2320-360-34-1
(18)

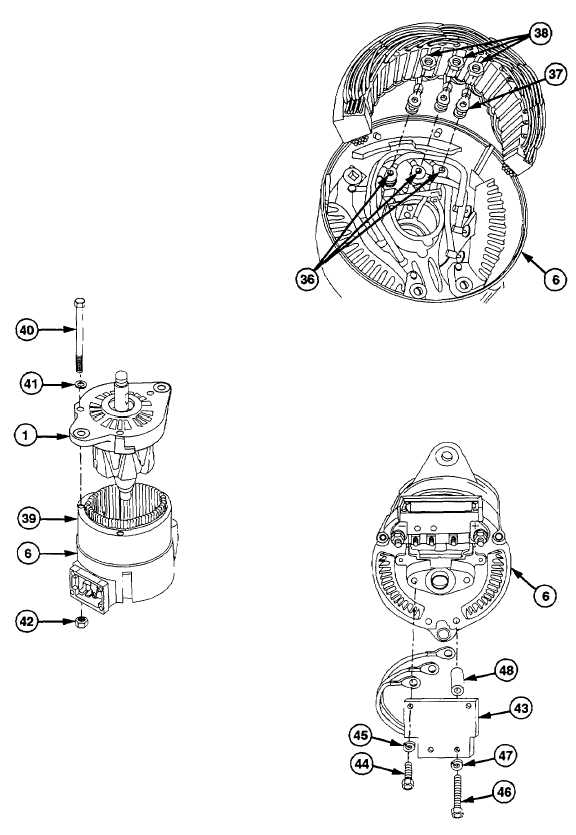

Install six stator ring terminals (37) on slip
ring end housing (6) and three regulator
studs (36) with three tenz nuts (38).
(19)
Align screw holes on slip ring end housing
(6), stator (39), and drive end housing (1).
(20)
Install slip ring end housing (6) on drive end
housing (1) with three screws (40), washers
(41), and new locknuts (42).
(21)
Install capacitor (43) on slip ring end
housing (6) with two screws (44), new
lockwashers
(45),
screws
(46),
new
lockwashers (47), and spacers (48).
6-13
|
