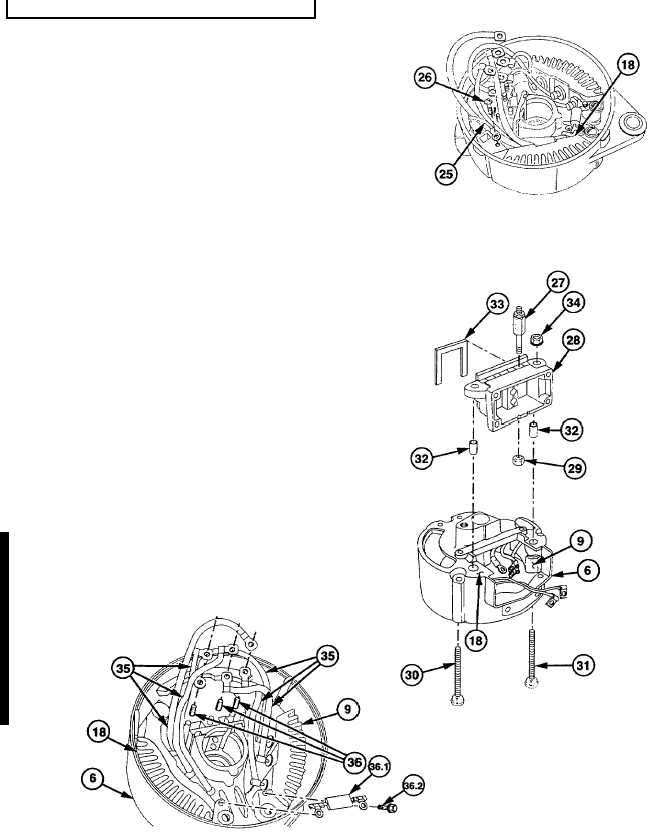

TM 9-2320-360-34-1 6-2.  12-VOLT ALTERNATOR REPAIR (CONT) (14) Install  red  wire  (25)  on  positive  (+)  rectifier (18) with screw (26). (15) Install  three  terminal  studs  (27)  in  regulator holder (28) with three nuts (29). CAUTION Red and black rectifier wires should be positioned in grooves between regulator    holder    and    slip    ring    end housing.    Failure  to  comply  may  result in damaged wiring. (16) Install    positive    (+)    terminal    screw    (30), negative (-) terminal screw (31), two insulation   bushings   (32),   regulator   holder (28),   new   gasket   (33),   and   two   tenz   nuts (34)  in  slip  ring  end  housing  (6),  positive  (+) rectifier (18), and negative (-) rectifier (9). NOTE Rectifier  leads  should  be  firmly  seated in regulator holder. (17) Install    six    rectifier    leads    (35)    on    three regulator studs (36). (17.1) Install   capacitor   (36.1)   on   positive   rectifier (18)    and    negative    rectifier    (9)    with    two screws (36.2). 6-12  Change 1
