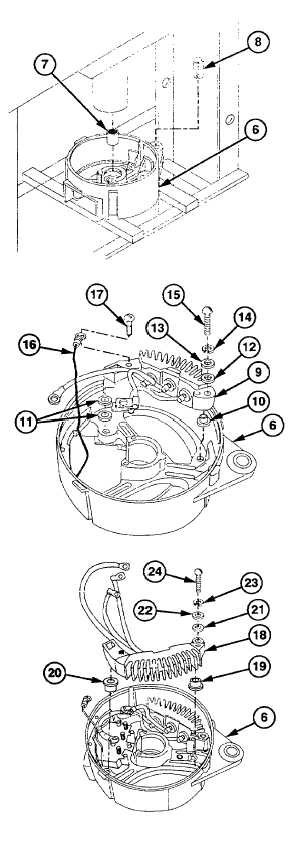

Position slip ring end housing (6) in press.
NOTE
When properly installed, bearing
seats on lip inside bearing bore.
(7)
Press bearing (7) in slip ring end housing
(6).
(8)
Press bushing (8) in slip ring end housing
(6).
(9)
Remove slip ring end housing (6) from
press.
(10)
Coat bearing (7) rollers with grease.
(11)
Install negative (-) rectifier (9) in slip ring
end housing (6) with bushing (10), two
washers (11), plastic washer (12), washer
(13), new lockwasher (14), and mounting
screw (15).
(12)
Install black wire (16) on negative (-)
rectifier (9) with screw (17).
(13)
Install positive (+) rectifier (18) in slip ring
end
housing
(6)
with
bushing
(19),
bushing (20), plastic washer (21), washer
(22), new lockwasher (23), and mounting
screw (24).
