6-2. 12-VOLT ALTERNATOR REPAIR (CONT)
CAUTION
Do not remove lower bushing from
negative rectifier. Failure to comply
may damage bushing.

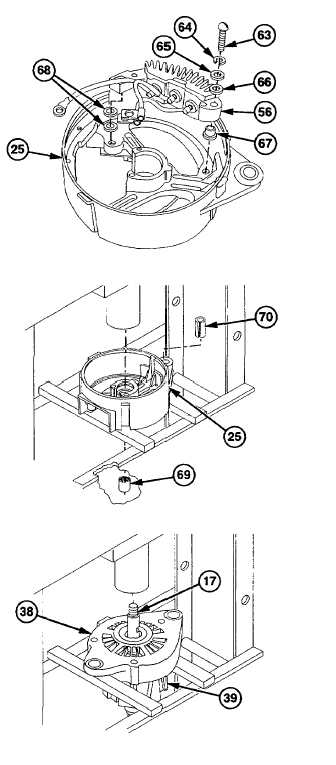

(26)
Remove lower mounting screw (63),
lockwasher (64), washer (65), plastic
washer (66), negative rectifier (56) with
bushing (67), and two washers (68) from
slip ring end housing (25). Discard
lockwasher.
(27)
Position slip ring end housing (25) in press
and remove bearing (69).
(28)
Remove bushing (70) from slip ring end
housing (25).
(29)
Position drive end housing (38) and rotor
assembly (39) in press with threaded end
of shaft (17) pointing upward.
CAUTION
Protect rotor assembly from striking
floor while pressing from drive end
housing. Failure to comply may
result in damage to rotor assembly.
(30)
Press rotor assembly (39) out from drive
end housing (38).
