NOTE
Tag and mark wires before removal.
(21)

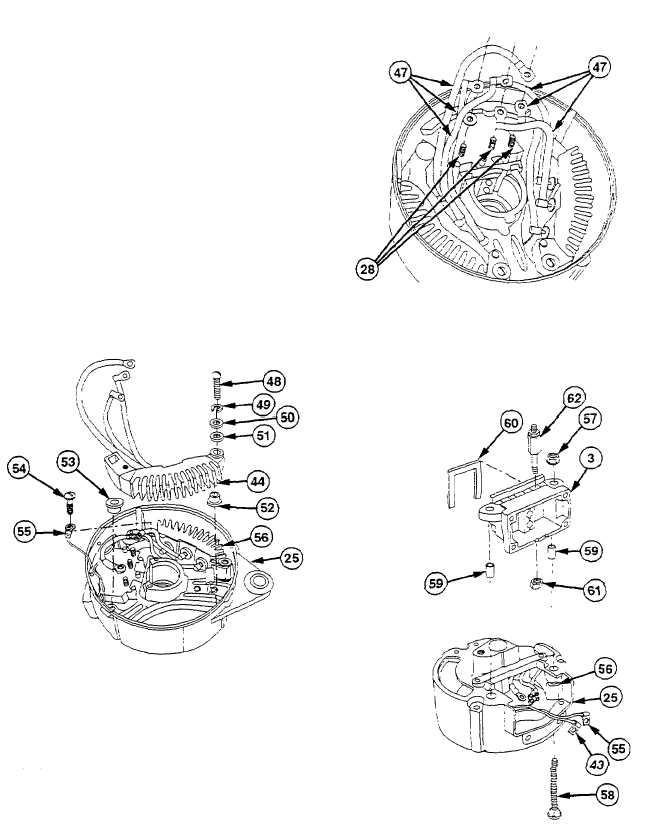

Remove six rectifier wires (47) from three
terminals (28).
CAUTION
Do not remove lower bushing from
positive rectifier. Failure to comply
may damage bushing.
(22)
Remove
lower
mounting
screw
(48),
lockwasher
(49),
washer
(50),
plastic
washer (51), positive rectifier (44) with lower
bushing (52), and bushing (53) from slip ring
end housing (25). Discard lockwasher.
(23)
Remove screw (54) and wire (55) from
negative rectifier (56).
(24)
Remove tenz nut (57), negative terminal
screw (58), two insulation bushings (59),
regulator holder (3), gasket (59), wire (43),
and wire (55) from negative rectifier (56) and
slip ring end housing (25). Discard gasket.
(25)
Remove three nuts (61) and terminal studs
(62) from regulator holder (3).
