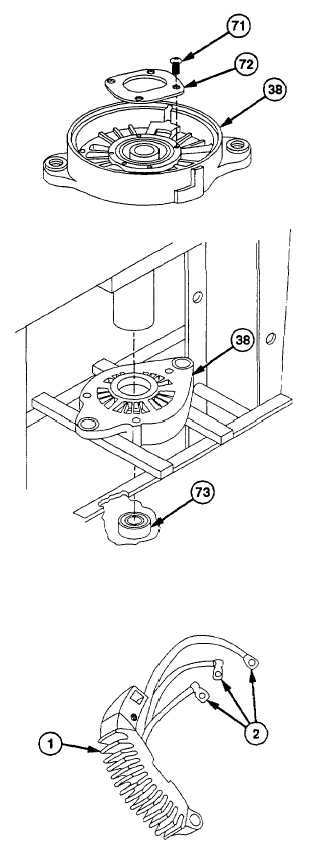

Remove four screws (71) and bearing
retainer (72) from drive end housing (38).
(32)
Position drive end housing (38) in press
with bearing (73) side down.
(33)
Press bearing (73) out of drive end
housing (38).
b.
Testing
(1)
Touch negative (-) test lead of multimeter to
bare metal surface on positive rectifier (1).
NOTE
If multimeter does not indicate low
resistance
in
step
(2),
positive
rectifier
is
defective.
Replace
rectifier.
(2)
Touch positive (+) test lead of multimeter
separately
to
each
of
three
eyelet
terminals (2).
(3)
Touch positive (+) test lead to bare metal
surface on positive rectifier (1).
NOTE
If
multimeter
does
not
indicate
infinity in step (4), positive rectifier is
defective. Replace rectifier.
(4)
Touch negative (-) test lead separately to
each of three eyelet terminals (2).
