TM 9-2320-360-34-1

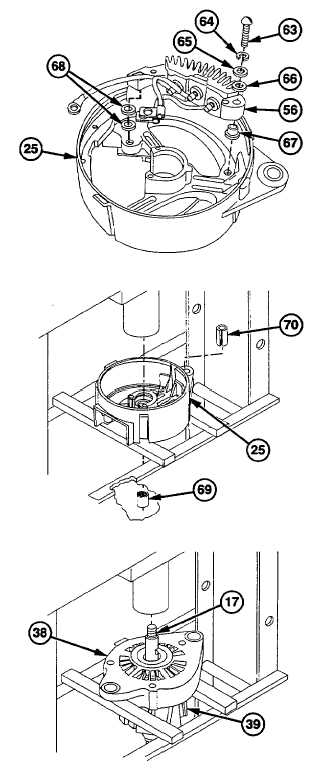

6-2. 12-VOLT ALTERNATOR REPAIR (CONT)
(16)
Remove three locknuts (35), washers
(36), and screws (37) from drive end
housing (38) and slip ring end housing
(25). Discard locknuts.
CAUTION
When removing rotor, completely
separate rotor from stator. Stator will
still be attached to slip ring housing.
Do not attempt to separate stator
from slip ring housing. Failure to
comply may result in damage to
stator wires.
NOTE
Rotor will remain attached to drive
end housing during removal.
(17)
Remove drive end housing (38) and rotor
assembly (39) from slip ring end housing
(25) and stator (40).
(18)
Remove three tenz nuts (41) and stator
(40) from slip ring end housing (25).
(18.1)
Remove two screws (41.1) and capacitor
(41.2) from positive rectifier (44) and
negative rectifier (56).
(19)
Remove screw (42) and wire (43) from
positive rectifier (44).
(20)
Remove tenz nut (45) and positive
terminal screw (46) from positive rectifier
(44) and slip ring end housing (25).
6-4 Change 1
|
