TM 9-2320-360-34-1
NOTE
Vise is used to securely hold pulley for
step (9).
(8)

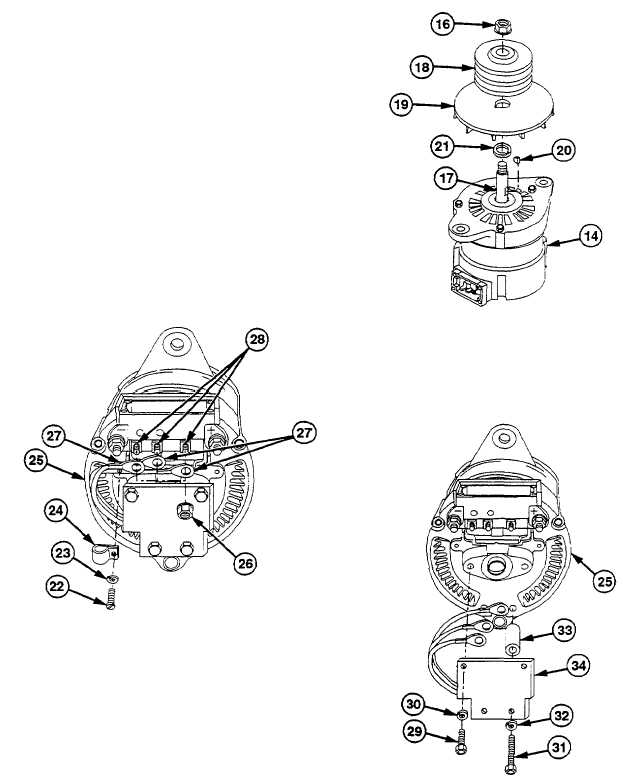

Position alternator (14) in vise.
(9)
Remove locknut (16) from shaft (17).
Discard locknut.
(10)
Remove alternator (14) from vise.
(11)
Remove pulley (18) from shaft (17).
(12)
Remove cooling plate (19), key (20), and
spacer (21) from shaft (17).
(13)
Remove screw (22), lockwasher (23), and
clip (24) from slip ring end housing (25).
Discard lockwasher.
(14)
Remove three tenz nuts (26) and wires (27)
from terminals (28).
(15)
Remove two screws (29), lockwashers (30),
screws (31), lockwashers (32), spacers (33),
and capacitor (34) from slip ring end
housing (25). Discard lockwashers.
6-3
|
