TM 9-2320-360-34-1
5-7. AFTERCOOLER REPLACEMENT (CONT)I
(4)

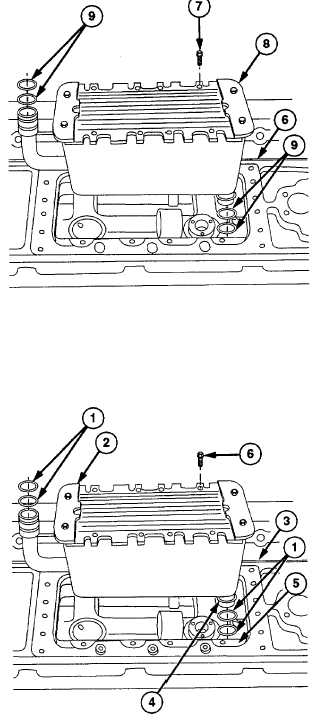

Remove eight self-locking screws (7) from
aftercooler (8). Discard screws.
CAUTION
Remove
aftercooler
carefully
by
lifting rear of aftercooler first. Fins
are delicate and can be easily
damaged.
(5)
Remove aftercooler (8) from engine block
(6).
(6)
Remove four preformed packings (9) from
aftercooler
(8).
Discard
preformed
packings.
b.
Inspection
Inspect water openings for blockage.
c.
Installation
(1)
Coat four new preformed packings (1) with
lubricating oil.
(2)
Install four new preformed packings (1) on
aftercooler (2).
(3)
Position aftercooler (2) in engine block (3),
front outlet tube first, so inlet tube (4) fits
into adapter (5).
(4)
Secure aftercooler (2) with eight new self-
locking screws (6). Do not tighten.
5-42
|
