WARNING
On direct contact, uncured silicone
sealant irritates eyes. in case of
contact, flush eyes with water and
seek medical attention. In case of
skin contact, wipe off and flush with
water.
(5)

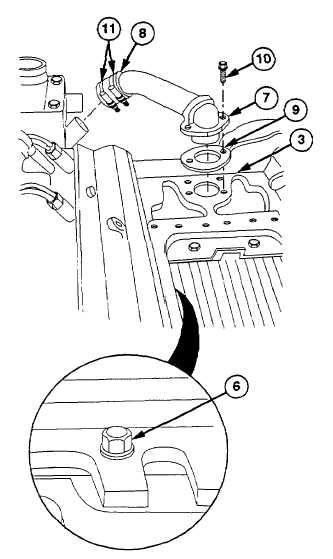

Coat flange of elbow (7) and hose (8) with
silicone adhesive-sealant.
(6)
Install new gasket (9) and elbow (7) on
engine block (3) with two screws (10).
NOTE
When clamps are properly tightened,
washer stacks should be nearly
collapsed flat and screw tip should
extend beyond clamp approximately
3/16 in. (8 mm).
(7)
Install hose (8) and two clamps (11) on
elbow (7). Torque to 90 lb-in. (10.1 Nm).
(8)
Tighten two screws (10) to 178 lb-in. (20
Nm).
(9)
Tighten eight self-locking screws (6) to
178 lb-in. (20 Nm)
d.
Follow-On Maintenance
(1)
Install blower (para 4-6).
(2)
Start engine and check engine operation (TM 9-2320-360-10).
5-43 (5-44 blank)
|
