5-7. AFTERCOOLER REPLACEMENT
This task covers
a. Removal
c. Installation
b. Inspection
d. Follow-On Maintenance
INITIAL SETUP
Equipment Conditions
Materials/Parts
Blower removed (para 4-6).
Adhesive-Sealant, Silicone (Item 2, Appendix B)
Oil, Lubricating (Item 45, Appendix B)
Tools and Specials Tools
Gasket (Item 53, Appendix F)
Tool Kit, Genl Mech (Item 202, Appendix E)
Packings, Preformed (4) (Item 188,
Wrench, Torque, 0-300 Lb-In. (Item 235,
Appendix F)
Appendix E)
Screws, Self-Locking (8) (Item 284,
Appendix F)
a.
Removal

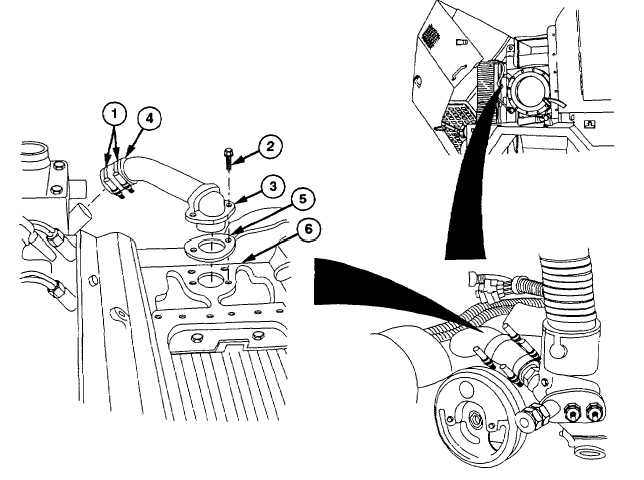

(1)
Loosen two clamps (1).
(2)
Remove two screws (2) from elbow (3).
(3)
Remove hose (4), elbow (3), and gasket (5)
from engine block (6). Discard gasket.
