TM 9-2320-360-34-1
(20)

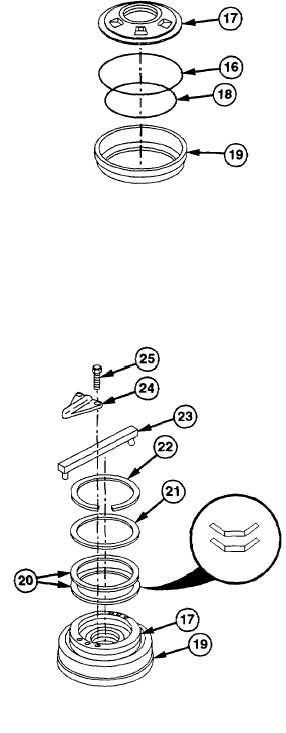

Coat new preformed packing (16) with
lubricating oil and install on clutch body
(17).
(21)
Coat new preformed packing (18) with
lubricating oil and install on piston housing
(19).
(22)
Install clutch body (17) on piston housing
(19).
(23)
Coat two springs (20) with lubricating oil
and install springs, concave side up, on
clutch body (17).
(24)
Coat thrust washer (21) with oil and install,
flat side up, on springs (20).
NOTE
Ensure blocking does not touch
inside clutch body.
(25)
Support outside piston housing (19) with
wooden blocks.
WARNING
Wear eye protection and use care
when
installing
retaining
rings.
Retaining rings are under spring
tension and can act as projectiles
when released and may cause severe
eye injury.
(26)
Position new retaining ring (22) on piston
housing (19).
CAUTION
Do not press thrust washer down
more than 1/32 in. (0.8 mm) or thrust
washer
and
springs
may
be
damaged.
(27)
Use tool no. 6 (23) to press thrust washer
(21) down 1/32 in. (0.8 mm) and install
retaining ring (22) in piston housing (19).
(28)
Install two oilers (24) with tour screws
(25). Torque to 45 lb-in. (5.1 Nm).
5-31
|
