TM 9-2320-360-34-1
5-6. FAN CLUTCH REPAIR (CONT)
(29)

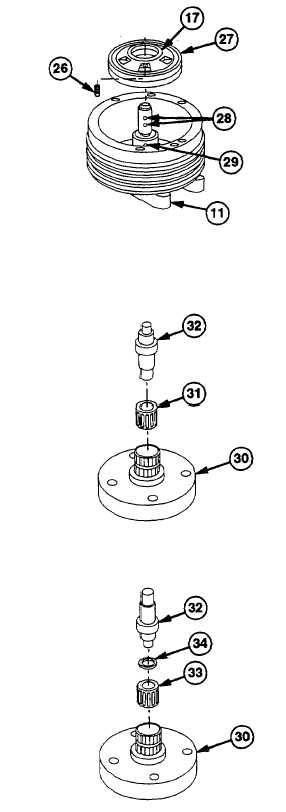

Position setscrew (26) on load cell
assembly (27). Do not tighten.
(30)
Position load cell assembly (27) on
bracket and shaft assembly (11) until
upper surface of clutch body (17) is flush
with, or just below shoulder of shaft.
CAUTION
Setscrew must rest in center of hole.
Ensure setscrew is centered when
tightened. Damage to shaft may
result.
(31)
Align setscrew (26) with oil holes (28) and
setscrew hole (29) on bracket and shaft
assembly (11).
(32)
Tighten setscrew (26).
(33)
Support fan hub (30) with wooden blocks.
NOTE
·
Narrow (0.75 in. long) roller
bearing is installed first.
·
Roller
bearing
is
installed
correctly when shoulder of tool
no. 1 contacts fan hub.
(34)
Coat roller bearing (31) with lubricating oil.
(35)
Use long end of tool no. 1 (32) to press
roller bearing (31) numbered side up, in
fan hub (30).
NOTE
·
Wider roller bearing (1 in. long) is
second roller bearing installed.
·
Roller
bearing
is
correctly
installed when shoulder of tool
no. 1 contacts fan hub.
(36)
Coat roller bearing (33) with lubricating oil.
(37)
Use short end of tool no. 1 (32) to press
roller bearing (33) numbered side up, in
fan hub (30).
(38)
Install new retaining ring (34) in fan hub
(30).
5-32
|
