NOTE
When clamps are properly tightened,
washer stacks should be nearly
collapsed flat and screw tip should
extend beyond clamp approximately
3/16 in. (8 mm).
(16)

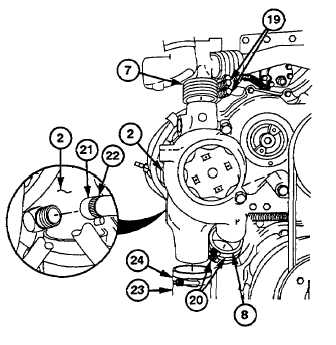

Secure two hoses (7 and 8) with four hose
clamps (19 and 20) on water pump (2).
Torque to 90 lb-in. (10.1 Nm).
(17)
Install hose (21) on water pump (2) with
clamp (22).
(18)
Install hose (23) on water pump (2) with
clamp (24). Torque to 100 lb-in. (11
Nm).
(19)
Deleted.
f.
Follow-On Maintenance
(1)
Install fan (TM 9-2320-360-20).
(2)
Install secondary fuel filter head (para 4-13).
(3)
Fill cooling system (TM 9-2320-360-20).
(4)
Install inner fender (TM 9-2320-360-20).
