TM 9-2320-360-34-1
5-4. RIGHT THERMOSTAT HOUSING REPLACEMENT
This task covers:
a. Removal
c. Installation
b. Cleaning/Inspection
d. Follow-On Maintenance
INITIAL SETUP
Equipment Conditions
Materials/Parts
Thermostat removed (TM 9-2320-360-20).
Compound, Sealing, Pipe Thread (Item 28,
Coolant Temperature Sensor removed,
Appendix B)
DDEC III only (TM 9-2320-360-20).
Tools and Special Tools
Solvent, Dry Cleaning (Item 54, Appendix B)
Tool Kit, Genl Mech (Item 202, Appendix E)
Gasket (Item 43, Appendix F)
Compressor Unit, Air (Item 24, Appendix E)
Lockwashers (2) (Item 127, Appendix F)
Goggles, Industrial (Item 57, Appendix E)
Lockwasher (Item 121, Appendix F)
Wrench, Torque, 0-175 Lb-Ft (Item 236,
Appendix E)
a.
Removal

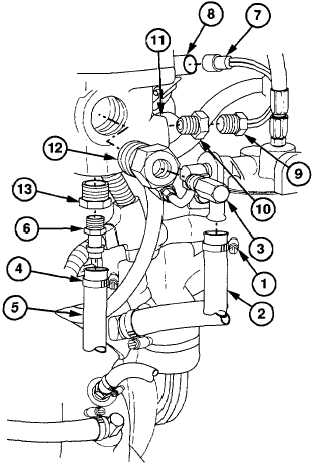

(1)
Loosen clamp (1) and remove hose (2)
from elbow (3).
(2)
Loosen clamp (4) and remove hose (5)
from fitting (6).
NOTE
Steps (3) and (4) apply only to DDEC
II engines.
(3)
Remove plug (7) from receptacle (8).
(4)
Remove
STE/ICE
water
temperature
sensor (9) and fitting (10) from thermostat
housing (11).
(5)
Remove elbow (3) and fitting (12) from
thermostat housing (11).
(6)
Remove fitting (6) and fitting (13) from
thermostat housing (11).
5-16 Change 3
|
