TM 9-2320-360-34-1
(7)

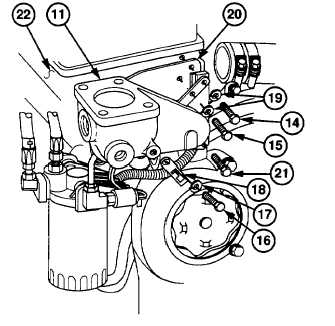

Remove three screws (14 thru 16),
lockwasher (17), clip (18), and two
lockwashers (19). Discard lockwashers.
(8)
Remove thermostat housing (11) and
gasket (20). Discard gasket.
(9)
Remove screw (21) from cylinder head
(22).
b.
Cleaning/inspection
CAUTION
Wear eye protection and use care when scraping gasket material from machined
surface of housing. Damage to housing could result.
(1)
Scrape gasket material from thermostat housing.
WARNING
Dry cleaning solvent P-D-680 is toxic and flammable. Wear protective goggles and
gloves and use only in a well-ventilated area. Avoid contact with skin, eyes, and
clothes, and don't breathe vapors. DO NOT use near open flame or excessive heat.
The flash point is 100-138° F (38-59°C). If you become dizzy while using cleaning
solvent, get fresh air immediately and medical aid. If contact with eyes is made,
wash your eyes with water and get medical aid immediately.
(2)
Clean metal parts with dry cleaning solvent.
WARNING
Compressed air for cleaning purposes will not exceed 30 psi (207 kPa). Use only
with effective chip guarding and personal protective equipment (goggles/shield,
gloves, etc.).
(3)
Dry metal parts with compressed air.
(4)
Inspect housing for cracks or other damage.
(5)
Replace damaged parts.
5-17
|
