TM 9-2320-360-34-1
WARNING
Pipe thread sealing compound can
burn easily, can give off harmful
vapors, and is harmful to skin and
clothing. To avoid injury or death,
keep away from open fire and use in
well-ventilated area. If pipe thread
sealing compound gets on skin or
clothing, wash immediately with soap
and water.
(12)
Coat
threads
of
water
temperature
sending unit (17) with pipe thread sealing
compound.
(13)

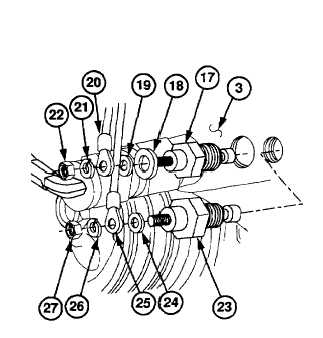

Install water temperature sending unit
(17), insulator (18), washer (19), wire no.
1320 (20), new lockwasher (21), and nut
(22) on thermostat housing (3).
(14)
Coat threads of alarmstat (23) with pipe
thread sealing compound.
NOTE
Step (15) only applies to DDEC II.
(15)
Install alarmstat (23), washer (24), wire
no. 524 (25), new lockwasher (26), and
nut (27) on thermostat housing (3).
d.
Follow-On Maintenance
(1)
Install thermostat (TM 9-2320-360-20).
(1.1)
Install STE-ICE temperature sensor, DDEC Ill only (TM 9-2320-360-20).
(2)
Start and warm up engine (TM 9-2320-360-10).
(3)
Check WATER TEMP gage for normal operating temperature and check for leaks (TM 9-2320-360-10).
(4)
Shut off engine (TM 9-2320-360-10).
Change 3 5-15
|
