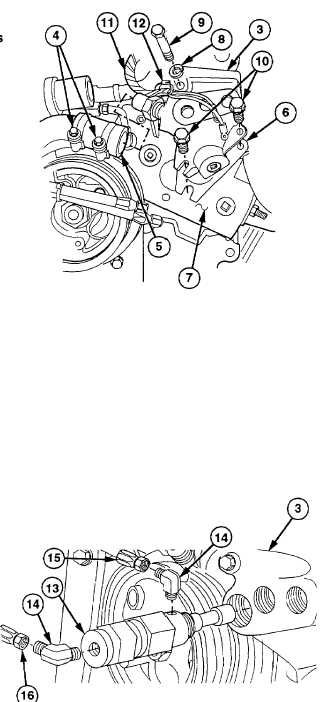

5-3. LEFT THERMOSTAT HOUSING REPLACEMENT (CONT)
(4)
Position two damps (4), hose (5), new
gasket (6), and thermostat housing (3) on
engine (7).
(5)
Install new lockwasher (8) and three
screws (9 and 10) on thermostat housing
(3). Torque to 30-35 lb-ft (41-47 Nm).
NOTE
Plastic
cable
ties
should
be
positioned
in
locations
marked
during removal.
(6)
Secure wiring harness (11) to thermostat
housing (3) with plastic cable tie (12).
NOTE
When clamps are properly tightened,
washer stacks should be nearly
collapsed flat and screw tip should
extend beyond clamp approximately
3/16 in. (8 mm).
(7)
Tighten two clamps (4) to 90 lb-in. (10.1
Nm).
WARNING
Pipe thread sealing compound can
burn easily, can give off harmful
vapors, and is harmful to skin and
clothing. To avoid injury or death,
keep away from open fire and use in
well-ventilated area. If pipe thread
sealing compound gets on skin or
clothing, wash immediately with soap
and water.
(8)
Coat threads of fanstat (13) with pipe
thread sealing compound.
(9)
Install fanstat (13) in thermostat housing
(3).
(10)
Install two elbows (14) in fanstat (13).
(11)
Connect hose no. 2758 (15) and no. 2759
(16) to elbows (14).
