TM 9-2320-360-34-1
NOTE
· Five shroud mounting brackets are
installed
on
side
of
radiator
opposite transmission cooler line
openings in bottom tank.
· Holes on bolting strip are closer to
one end than the other. These
ends must be positioned to outside
edge of radiator.
(3)

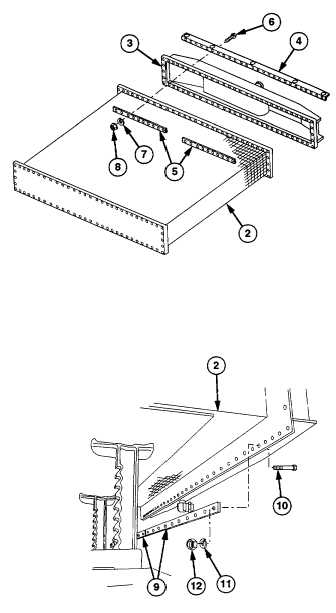

Position bottom tank (3), shroud mounting
bracket (4), and 2 bolting strips (5) on
radiator core (2) with 20 screws (6), new
lockwashers (7), and nuts (8). Do not
tighten.
(4)
Position 2 bolting strips (9) on radiator
core (2) with 20 screws (10), new
lockwashers (11), and nuts (12). Do not
tighten.
5-7
|
