TM 9-2320-360-34-1
5-2. RADIATOR TEST/REPAIR (CONT)
(11)

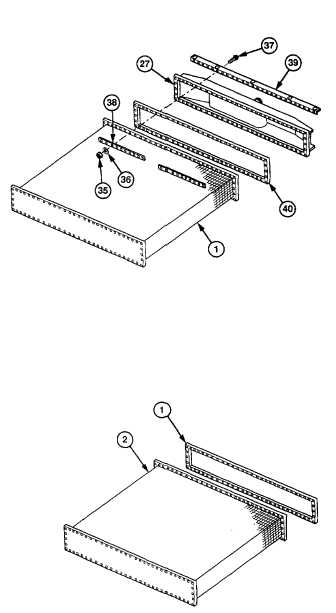

Remove 20 nuts (35), lockwashers (36),
screws (37), 2 bolting strips (38), and
shroud mounting bracket (39) from rear of
bottom tank (27) and radiator core (1).
Discard lockwashers.
(12)
Remove bottom tank (27) and gasket (40)
from radiator core (1) with aid of assistant.
Discard gasket.
b.
Cleaning/Inspection
(1)
Scrape gasket and sealant material from
radiator tanks and radiator core.
(2)
Inspect radiator tanks for cracks, dents,
and other damage. Replace damaged
tanks.
(3)
Inspect radiator core for plugged tubes.
Light should be visible through all tubes
that are not sealed.
(4)
Refer
to
TB
750-254
for
additional
cleaning information.
c.
Assembly
WARNING
Adhesive-sealant can burn easily,
can give off harmful vapors, and Is
harmful to skin and clothing. To
avoid Injury or death, keep away from
open fire and use in well ventilated
area. If adhesive sealant gets on skin
or clothing, wash immediately with
soap and water.
CAUTION
Gasket must be secured to radiator
core before adhesive sealant sets.
Failure to comply may result in
radiator leaking.
(1)
Coat ends and joint on gasket (1) with
adhesive-sealant.
(2)
Position gasket (1) on radiator core (2).
5-6
|
