TM 9-2320-360-34-1
(8)

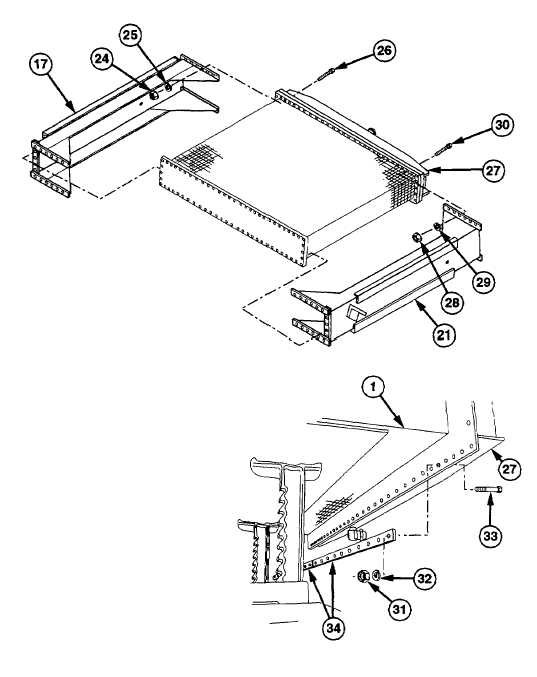

Remove 15 nuts (24), lockwashers (25),
and screws (26) from right column (17)
and bottom tank (27) with aid of assistant.
Discard lockwashers.
(9)
Remove 15 nuts (28), lockwashers (29),
and screws (30) from left column (21) and
bottom tank (27) with aid of assistant.
Discard lockwashers.
(10)
Remove 20 nuts (31), lockwashers (32),
screws (33), and 2 bolting strips (34) from
front of bottom tank t27) and radiator core
(1) with aid of assistant. Discard
lockwashers.
5-5
|
