5-2. RADIATOR TEST/REPAIR (CONT)
(4)

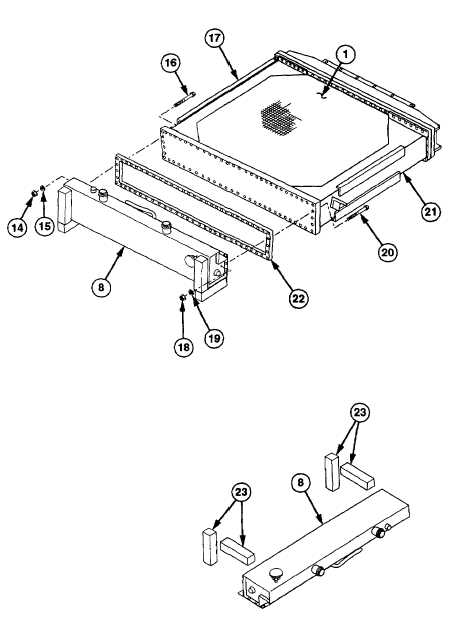

Remove three nuts (14), lockwashers (15)
and screws (16) from top tank (8) and
right column (17). Discard lockwashers.
(5)
Remove three nuts (18), lockwashers
(19), and screws (20) from top tank (8)
and
left
column
(21).
Discard
lockwashers.
(6)
Remove top tank (8) and gasket (22) from
radiator core (1) with aid of assistant.
Discard gasket.
NOTE
Do step (7) only if foam blocks fail
inspection.
(7)
Remove and discard four foam blocks (23)
from top tank (8).
