TM 9-2320-360-34-1
(2)

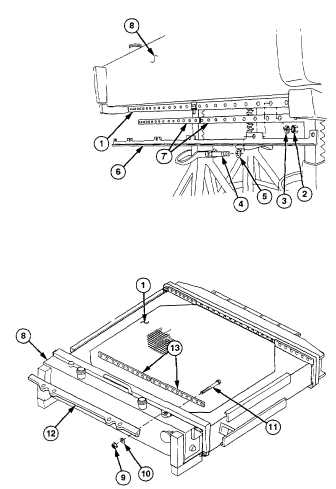

Remove 32 nuts (2), lockwashers (3),
screws (4), 4 washers (5), baffle mounting
bracket (6), and 2 bolting strips (7) from
front of top tank (8) and radiator core (1).
Discard lockwashers.
(3)
Remove 32 nuts (9), lockwashers (10),
screws (11), shroud mounting bracket
(12), and 2 bolting strips (13) from rear of
top tank (8) and radiator core (1). Discard
lockwashers.
5-3
|
