TM 9-2320-360-34-1
5-2. RADIATOR TEST/REPAIR
This task covers
a. Disassembly
d. Testing
b. Cleaning/inspection
e. Follow-On Maintenance
c. Assembly
Initial Setup:
Equipment Conditions
Materials/Parts
Radiator removed (TM 9-2320-360-20).
Adhesive-Sealant, Permatex No. 1 (Item 9,
Radiator sight glass removed
Appendix B)
(TM 9-2320-360-20).
Gaskets (2) (Item 16, Appendix F)
Lockwashers (140) (Item 119, Appendix F)
Tools and Special Tools
Tool Kit, Genl Mech (Item 202, Appendix E)
Personnel Required
Adapter, Radiator (Item 2, Appendix E)
MOS 44B (2)
Jackstands (4) (Item 93, Appendix E)
Plug Set, Radiator (Item 115, Appendix E)
Plywood (Figure C-5, Appendix C)
Pressure Tester, Radiator (Item 117,
Appendix E)
Sling, Endless Strap (Item 161, Appendix E)
Wrench Set, Socket, 3/8 In. Drive (Item 232,
Appendix E)
Wrench, Torque, 0-300 Lb-In. (Item 235,
Appendix E)
a.
Disassembly
CAUTION
Failure to properly support radiator
core as described in step (1) will
result in damage to core.
NOTE
Jackstands should be positioned at
highest level for easier access to
lower side of radiator.

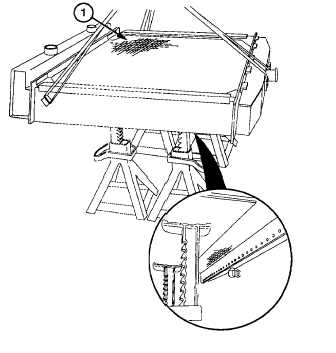

(1)
Position radiator core (1) on plywood
supported by four jackstands.
5-2
|
