4-13. SECONDARY FUEL FILTER HEAD REPLACEMENT (CONT)
(4)

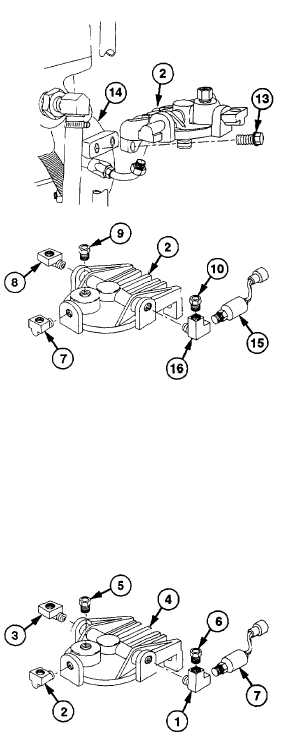

Remove two screws (13) and head (2)
from engine (14).
(5)
Remove STE-ICE sensor (15) from tee
(16).
(6)
Remove reducer (9) from head (2).
(7)
Remove reducer (10) from tee (16).
(8)
Remove two elbows (7 and 8) and tee
(16) from head (2).
b.
Installation
WARNING
Pipe thread sealing compound can
burn easily, can give off harmful
vapors, and Is harmful to skin and
clothing. To avoid Injury or death,
keep away from open fire and use in
well-ventilated area. If pipe thread
sealing compound gets on skin or
clothing, wash immediately with soap
and water.
(1)
Coat threads of tee (1) and two elbows (2
and 3) with pipe thread sealing compound.
(2)
Install tee (1) and two elbows (2 and 3) on
head (4).
NOTE
One reducer contains a calibrated
restrictor.
(3)
Install restricted reducer (5) on head (4).
(4)
Install reducer (6) on tee (1).
(5)
Install STE-ICE sensor (7) on tee (1).
