TM 9-2320-360-34-1
(6)

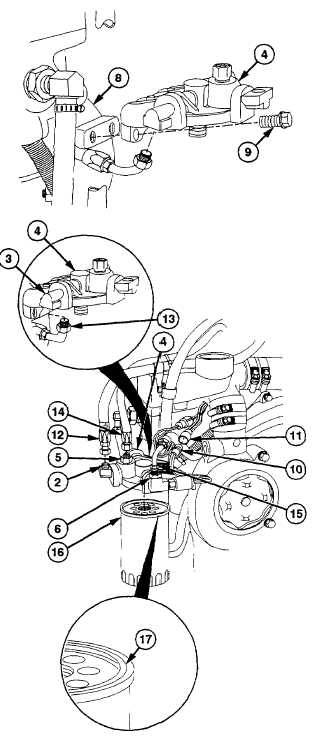

Install head (4) on engine (8) with two
screws (9).
(7)
Connect plug (10) to receptacle (11).
(8)
Connect fuel lines (12 and 3) to elbows (2
and 3).
(9)
Connect fuel lines (14 and 15) to reducers
(5 and 6).
WARNING
Fuel is very flammable and can
explode easily. To avoid serious
Injury or death, keep fuel away from
open fire and keep fire extinguisher
within easy reach when working with
fuel. Do not work on fuel system
when engine is hot. Fuel can be
Ignited by hot engine. When working
with fuel, post signs that read: NO
SMOKING
WITHIN
50
FEET
OF
VEHICLE.
(10)
Fill new fuel filter (16) with clean diesel
fuel oil.
(11)
Moisten new gasket (17) with diesel fuel
oil.
CAUTION
Do not install secondary fuel filter
with filter wrench. Hand tighten only.
Damage to filter may result.
(12)
Install new fuel filter (16) and new gasket
(17) on head (4) by turning clockwise.
(13)
Tighten until gasket (17) touches head (4),
then tighten additional one-half turn.
c.
Follow-On Maintenance
(1)
Connect batteries (TM 9-2320-360-20).
(2)
Start engine (TM 9-2320-360-10).
(3)
Check fuel filters for leaks.
(4)
Shut off engine (TM 9-2320-360-10).
(5)
Close engine hood (TM 9-2320-360-20).
4-47 (4-48 blank)
|
