4-13. SECONDARY FUEL FILTER HEAD REPLACEMENT
This task covers:
a. Removal
c. Follow-On Maintenance
b. Installation
Initial Setup:
Equipment Conditions
Materials/Parts
Engine hood opened (TM 9-2320-360-10).
Compound, Sealing, Pipe Thread (Item 28,
Batteries disconnected (TM 9-2320-360-20).
Appendix B)
Oil, Fuel, Diesel (Item 38, Appendix B)
Tools and Special Tools
Tags, Identification (Item 56, Appendix B)
Tool Kit, Genl Mech (Item 202, Appendix E)
Filter, Fuel (Item 12, Appendix F)
Removal Tool, Filter (Item 129, Appendix E)
a.
Removal
WARNING
Fuel Is very flammable and can
explode easily. To avoid serious
Injury or death, keep fuel away from
open fire and keep fire extinguisher
within easy reach when working with
fuel. Do not work on fuel system
when engine Is hot. Fuel can be
Ignited by hot engine. When working
with fuel, post signs that read: NO
SMOKING
WITHIN
50
FEET
OF
VEHICLE.

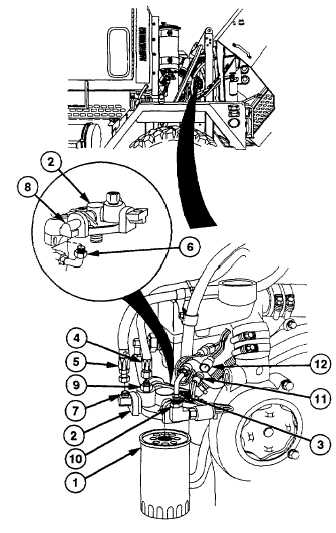

(1)
Remove fuel filter (1) from head (2) by
turning counterclockwise. Discard fuel
filter.
NOTE
Tag and mark fuel lines before
removing.
(2)
Disconnect four fuel lines (3 thru 6) from
elbows (7 and 8) and reducers (9 and 10).
(3)
Disconnect plug (11) from receptacle (12).
