TM 9-2320-360-34-1
(10)

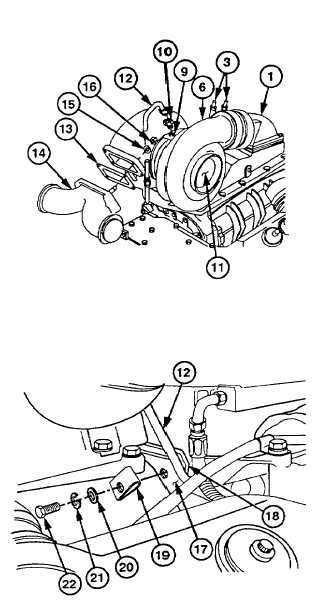

Install connector (10) on turbocharger (6).
CAUTION
Center housing must be filled with oil
before starting engine. Failure to
comply may result in damage to
turbocharger.
(11)
Fill center housing (9) with approximately
1 cup lubricating oil through connector
(10) while spinning compressor wheel
(11).
(12)
Connect oil hose (12) to connector (10).
(13)
Install new gasket (13) and tee (14) on
turbocharger (6) with four washers (15)
and new locknuts (16). Torque to 35-39
lb-ft (47-53 Nm).
(14)
Secure oil hose (12) to front blower cover
(17) and ECM bracket (18) with clip (19),
washer (20), new lockwasher (21), and
screw (22).
c.
Follow-On Maintenance
(1)
Install
air
intake
hose
(TM 9-2320-360-20).
(2)
Install exhaust pipe (TM 9-2320-360-20).
(3)
Install exhaust tubes (TM 9-2320-360-20).
(4)
Connect batteries (TM 9-2320-360-20).
(5)
Start engine. Run at idle for 10 minutes
(TM 9-2320-360-10).
(6)
Check turbocharger gaskets and ducts for
leaks.
(7)
Increase engine speed and listen for
smooth operation of turbocharger.
(8)
Shut off engine (TM 9-2320-360-10).
Change 1 4-41
|
