4-12. TURBOCHARGER OIL SUPPLY HOSE REPLACEMENT
This task covers:
a. Removal
c. Follow-On Maintenance
b. Installation
Initial Setup:
Equipment Conditions
Materials/Parts
Radiator and shroud removed
Lockwasher (Item 119, Appendix F)
(TM 9-2320-360-20).
Tools and Special Tools
Tool Kit, Genl Mech (Item 202, Appendix E)
a.
Removal
(1)

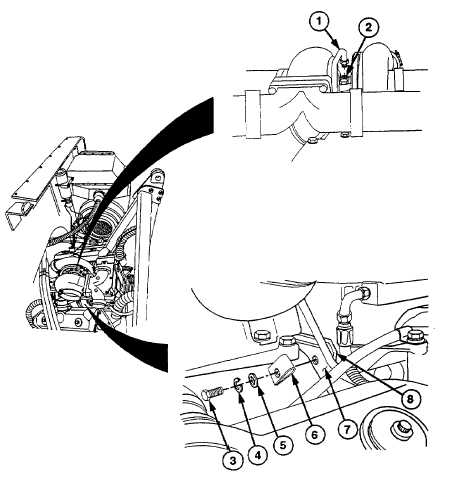

Disconnect oil hose (1) from turbocharger
(2).
(2)
Remove
screw
(3),
lockwasher
(4),
washer (5), and clip (6) from front blower
cover (7) and ECM bracket (8). Discard
lockwasher.
