TM 9-2320-360-34-1
WARNING
Adhesive-sealant can burn easily,
can give off harmful vapors, and is
harmful to skin and clothing. To
avoid Injury or death, keep away from
open fire and use in well ventilated
area. If adhesive sealant gets on skin
or clothing, wash immediately with
soap and water.
CAUTION
Preformed packing can move out of
position
during
turbocharger
installation. To prevent this, a spray
adhesive can be used to hold seal in
place. Do not apply adhesive directly
to seal. Failure to comply may result
in damage to equipment.
(3.1)
Spray a light, uniform coating of spray
adhesive into the seal counterbore (3.1) in
air inlet housing (5).
NOTE
Allow the adhesive to dry to a high-
tack
consistency
(sticky)
before
installing seal.
(4)

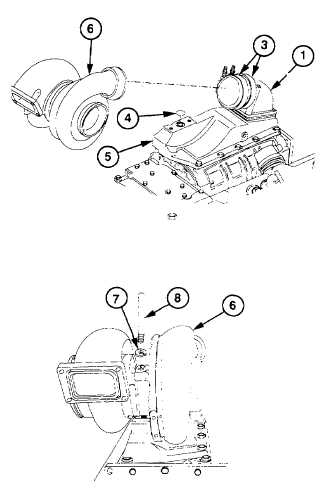

Install new preformed packing (4) in air
inlet housing (5).
(5)
Slide air outlet end of turbocharger (6) into
hose (2).
(6)
Position turbocharger (6) on air inlet
housing (5).
(7)
Install two new lockwashers (7) and
screws (8) in turbocharger (6). Torque to
45-50 Ib-ft (61-67 Nm).
NOTE
When installing clamps, position nuts
vertically to side of blower.
(8)
Position one clamp (3) over adapter (1)
and one clamp (3) over turbocharger (6).
(9)
Tighten clamps (3) until the spring is fully
compressed, approximately 50-60 lb-in.
(6-7 Nm).
Change 3 4-40.1/(4-40.2 blank)
|
