TM 9-2320-360-34-1
4-11. TURBOCHARGER REPLACEMENT
This task covers:
a. Removal
c. Follow-On Maintenance
b. Installation
Initial Setup:
Equipment Conditions
Materials/Parts
Batteries disconnected (TM 9-2320-360-20).
Adhesive, Spray (Item 10.1, Appendix B)
Exhaust pipe removed (TM 9-2320-360-20).
Oil, Lubricating (Item 43, Appendix B)
Air intake hose removed
Rags (Item 51, Appendix B)
(TM 9-2320-360-20).
Solvent, Dry Cleaning (Item 54, Appendix B)
Exhaust tubes removed (TM 9-2320-360-20).
Gasket (Item 62, Appendix F)
Locknuts (4) (Item 78, Appendix F)
Tools and Special Tools
Lockwashers (2) (Item 121, Appendix F)
Tool Kit, Genl Mech (Item 202, Appendix E)
Lockwasher (Item 119, Appendix F)
Compressor Unit, Air (Item 24, Appendix E)
Packing, Preformed (Item 190, Appendix F)
Goggles, Industrial (Item 57, Appendix E)
Wench Set, Socket, 3/8 in. drive (Item 232,
Appendix E)
Wench, Torque, 0-150 Lb-In (Item 234
Appendix E)
Wrench, Torque, 0-175 Lb-Ft (Item 236,
Appendix E)

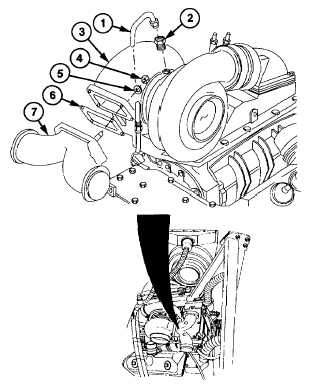

a.
Removal
(1)
Disconnect oil hose (1) from connector
(2).
(2)
Remove connector (2) from turbocharger
(3).
NOTE
Studs may come out of tee with nuts.
(3)
Remove four nuts (4), washers (5), gasket
(6), and tee (7) from turbocharger (3).
Discard gasket.
4-38 Change 3
|
