b.
Installation
NOTE
Cut ends of blower drive seal must
be straight and clean.
(1)
Cut new blower drive seal ring (1) straight
across.
WARNING
General purpose cement can burn
easily and is harmful to skin and
clothing. To avoid Injury or death,
keep away from open fire and use In
well-ventilated area. If cement gets
on
skin
or
clothing,
wash
immediately with soap and water.
(2)
Coat one end of new seal ring (1) with
general purpose cement.
CAUTION
Blower drive seal ring must be
centered evenly over groove between
blower and drive support. Failure to
comply will result in oil leak and
possible damage to equipment.
(3)

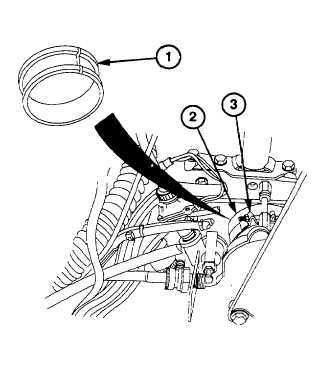

Install seal ring (1) on blower drive (2) with
cement-coated end on top.
(4)
Slide other end of seal ring (1) up to mate
cement-coated end.
(5)
Hold jointed ends of blower drive seal ring
(1) together for 30 seconds.
(6)
Position clamp (3) between raised edges
of seal ring (1).
(7)
Tighten clamp (3).
c.
Follow-On Maintenance
(1)
Start engine (TM 9-2320-360-10).
(2)
Let engine idle for 3 or 4 minutes. Check
around blower drive seal ring for leaks.
(3)
Install access panels (TM 9-2320-360-20).
