TM 9-2320-360-34-1
(4)

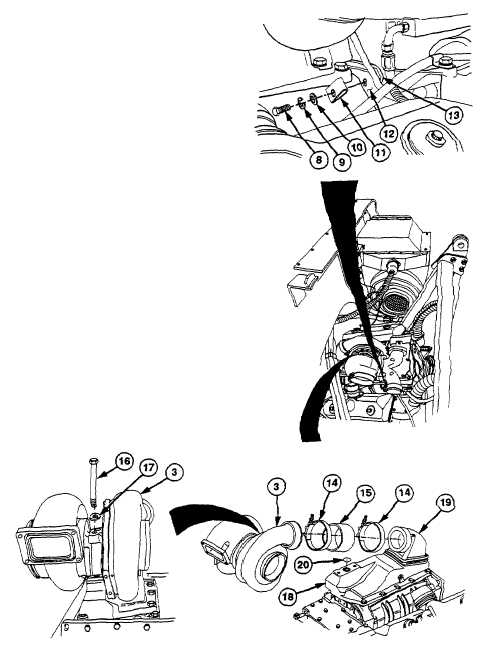

Remove
screw
(8),
lockwasher
(9),
washer (10), and dip (11) from front
blower cover (12) and ECM bracket (13).
Discard lockwasher.
(5)
Loosen two damps (14) on hose (15).
(6)
Remove two screws (16) and lockwashers
(17) from turbocharger (3). Discard
lockwashers.
NOTE
If hose sticks to turbocharger, pry
hose loose.
(7)
Remove turbocharger (3) from air inlet
housing (18) and adapter (19).
(8)
Remove hose (15) and two damps (14).
(9)
Remove preformed packing t20) from air
inlet housing (18). Discard preformed
packing.
(10)
Cover opening of adapter (19) with clean
Cloth.
4-39
|
