TM 9-2320-360-34-1
4-9. BLOWER ACCESSORY DRIVE HUB REPAIR (CONT)
b.
Disassembly

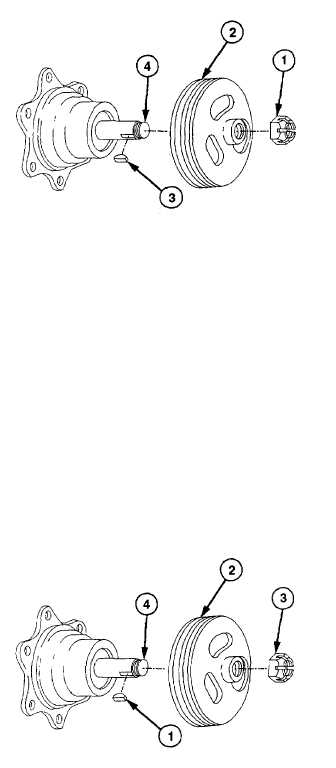

Remove nut (1), pulley (2), and key (3) from
shaft (4).
c.
Cleaning/Inspection
WARNING
Dry cleaning solvent P-D-680 is toxic
and flammable. Wear protective
goggles and gloves and use only In a
well-ventilated area. Avoid contact
with skin, eyes, and clothes, and
don't breathe vapors. DO NOT use
near open flame or excessive heat.
The
flash
point
is
100-138° F
(38-59° C). If you become dizzy while
using cleaning solvent, get fresh air
immediately and medical aid. If
contact with eyes is made, wash your
eyes with water and get medical aid
immediately.
(1)
Clean metal parts in dry cleaning solvent.
WARNING
Compressed
air
for
cleaning
purposes will not exceed 30 psi (207
kPa). Use only with effective chip
guarding and personal protective
equipment (goggles/shield, gloves,
etc.).
(2)
Dry parts with compressed air.
(3)
Inspect splines on bore of hub. If
defective, replace hub.
d.
Assembly
Install key (1), pulley (2), and nut (3) on shaft
(4).
4-34
|
