TM 9-2320-360-34-1
e.
Installation
NOTE
Rubber side of gasket faces engine.
(1)

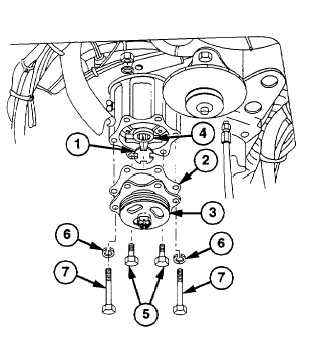

Install coupling (1), new gasket (2), and
pulley assembly (3) on drive hub (4) with
two screws (5).
(2)
Install two new lockwashers (6) and
screws (7) on pulley assembly (3).
Torque to 35-40 lb-ft (48-54 Nm).
f.
Follow-On Maintenance
(1)
Install 12-volt (rear) alternator bracket
(TM 9-2320-360-20).
(2)
Install access panels (TM 9-2320-360-20).
4-35
|
