4-9. BLOWER ACCESSORY DRIVE HUB REPAIR
This task covers:
a. Removal
d. Assembly
b. Disassembly
e. Installation
c. Cleaning/Inspection
f. Follow-On Maintenance
Initial Setup:
Equipment Conditions
Materials/Parts
12-volt (rear) alternator bracket removed
Solvent, Dry Cleaning (Item 54, Appendix B)
(TM 9-2320-360-20).
Tags, Identification (Item 56, Appendix B)
Access panels removed (TM 9-2320-360-20).
Gasket (Item 61, Appendix F)
Lockwashers (2) (Item 127, Appendix F)
Tools and Special Tools
Tool Kit, Genl Mech (Item 202, Appendix E)
Compressor Unit, Air (Item 24, Appendix E)
Goggles, Industrial (Item 57, Appendix E)
Press, Hydraulic (Item 116, Appendix E)
Wrench, Torque, 0-175 Lb-Ft (Item 236,
Appendix E)
a.
Removal
NOTE
Tag
and
mark
hardware
before
removal.

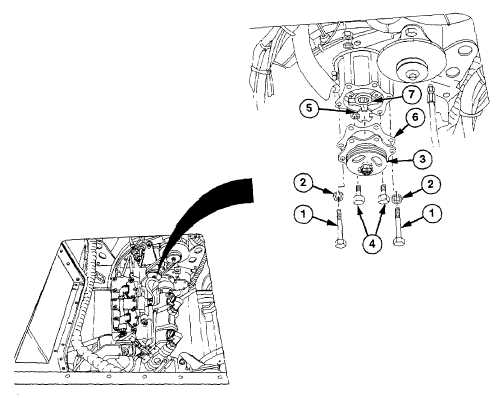

(1)
Remove two screws (1) and lockwashers
(2) from pulley assembly (3). Discard
lockwashers.
(2)
Remove two screws (4), pulley assembly
(3), coupling (5), and gasket (6) from drive
hub (7). Discard gasket.
