TM 9-2320-360-34-1
4-7. BLOWER BYPASS VALVE REPLACEMENT
This task covers:
a. Removal
c. Follow-On Maintenance
b. Installation
INITIAL SETUP
Equipment Conditions
Tools and Special Tools
Engine hood opened (TM 9-2320-360-10).
Tool Kit, Gent Mech (Item 202, Appendix E)
Batteries disconnected (TM 9-2320-360-20).
Doghouse door panel removed
Materials/Parts
(TM 9-2320-360-20).
Packing, Preformed (Item 195, Appendix F)
Front engine access panel removed
(TM 9-2320-360-20).
Lower engine access panel removed
(TM 9-2320-360-20).
a.
Removal
(1)

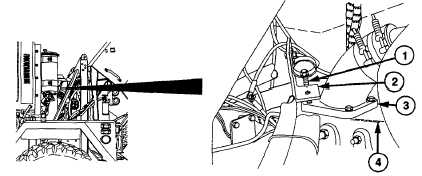

Remove screw (1) and standoff bracket
(2) from adapter (3) on air inlet housing
(4).
(2)

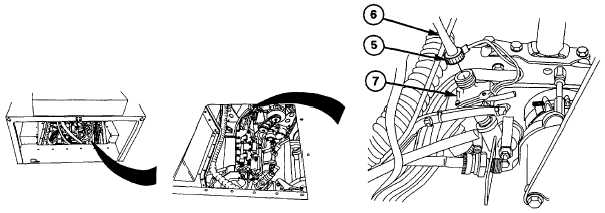

Turn collar
(5) counterclockwise and
remove tachometer cable (6) from sending
unit (7).
4-23
|
