TM 9-2320-360-34-1
4-7. BLOWER BYPASS VALVE REPLACEMENT (CONT)
(3)

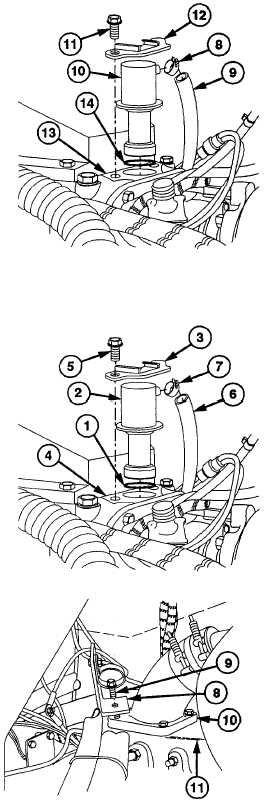

Remove clamp (8) and hose (9) from
blower bypass valve (10).
(4)
Remove two screws (11), bracket (12),
and blower bypass valve (10) from blower
(13).
(5)
Remove preformed packing (14) from
blower bypass valve (10). Discard
preformed packing.
b.
Installation
(1)
Install new preformed packing (1) on
blower bypass valve (2).
(2)
Install blower bypass valve (2) and
bracket (3) on blower (4) with two screws
(5).
(3)
Install hose (6) on blower bypass valve (2)
with damp (7).
(4)
Install standoff bracket (8) on adapter (9)
and air inlet housing (10) with screw (11).
4-24
|
