TM 9-2320-360-34-1
4-6. BLOWER REPLACEMENT (CONT)
WARNING
Wear protective goggles and use
care when Installing retaining rings.
Retaining rings are under spring
tension and can act as projectiles
when released causing severe eye
injury.
NOTE
Blower shaft should move in and out
freely. If blower shaft does not move
freely, loosen screws and repeat
steps (8) and (9).
(10)

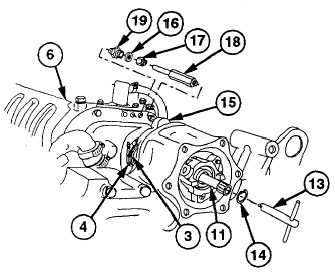

Push in on blower drive shaft (11) and
secure with new retaining ring (14).
(11)
Remove blower shaft alignment tool (13)
from blower drive shaft (11).
CAUTION
Blower seal ring must be centered
evenly over groove between blower
and drive support. Failure to comply
will result in oil leak and possible
equipment damage.
(12)
Position seal ring (3) over blower drive
support (15) and blower (6).
(13)
Position clamp (4) in groove of seal ring
(3). Tighten clamp.
(14)
Position new seal ring (16), nut (17),
connector (18), and adapter (19) on
blower (6) as an assembly.
(15)
Install adapter (19) on blower (6).
(16)
Install connector (18) on blower drive
support (15).
(17)
Tighten nut (17) on adapter (19).
c.
Follow-On Maintenance
(1)
Install fuel pump (para 4-4).
(2)
Install air inlet adapter (para 4-5).
(3)
Install rocker covers (TM 9-2320-360-20).
(4)
Install tachometer drive gear (para 3-25).
(5)
Install accessory drive hub (para 4-9).
4-22
|
