TM 9-2320-360-34-1
(3)

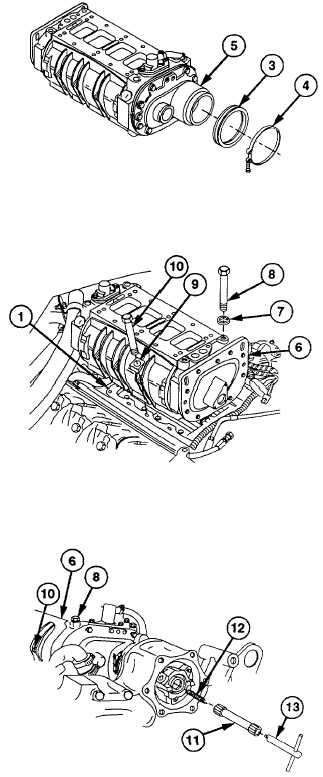

Position new seal ring (3) and clamp (4)
over drive end cover (5).
WARNING
Blower
weighs
70
lb
(32
kg).
Assistance
is
required
when
installing blower. Failure to comply
may result in injury to personnel.
NOTE
To aid in blower installation, hoses
and wiring harnesses should be
secured out of the way.
(4)
Position blower assembly (6) on gasket
(1) with aid of assistant.
(5)
Position four washers (7) and screws (8)
on blower (6) finger tight.
(6)
Install six retainers (9) and screws (10) on
blower (6) finger tight.
NOTE
Blower is in correct position when
drive shaft can be removed and
installed without drag.
(7)
Install blower drive shaft (11) and spring
(12) using blower shaft alignment tool
(13).
(8)
Tighten four screws (8) to 40-45 lb-ft (54-
61 Nm).
(9)
Tighten six screws (10) in 60 lb-in. (6.8
Nm) increments uniformly until tightened
to 30-35 Ib-ft (42-48 Nm).
4-21
|
