4-6. BLOWER REPLACEMENT (CONT)
(7)

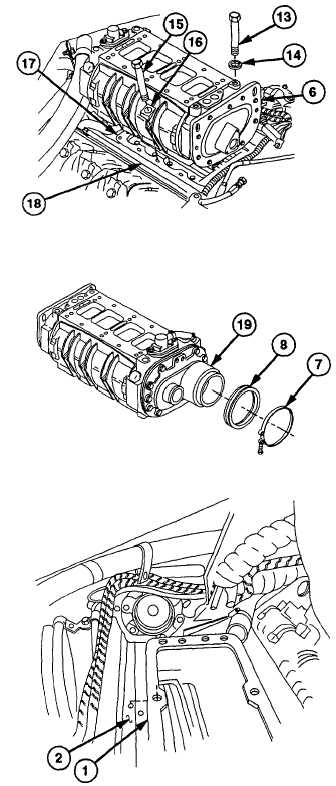

Remove four screws (13) and washers
(14) from blower (6).
(8)
Remove six screws (15) and retainers (16)
from blower (6).
WARNING
Blower
weighs
70
lb
(32
kg).
Assistance
is
required
when
removing blower. Failure to comply
may result in injury to personnel.
(9)
Remove blower (6) and gasket (17) from
engine block (18) with aid of assistant.
Discard gasket.
(10)
Remove clamp (7) and seal ring (8) from
drive end cover (19). Discard seal ring.
b.
Installation
(1)
Coat bottom of new gasket (1) with
grease.
(2)
Position gasket (1) on engine block
mounting flange (2).
