WARNING
Pipe thread sealing compound can
burn easily, can give off harmful
vapors, and is harmful to skin and
clothing. To avoid injury or death,
keep away from open fire and use in
well-ventilated area. If pipe thread
sealing compound gets on skin or
clothing, wash immediately with soap
and water.
CAUTION
Use pipe thread sealing compound
sparingly only on pipe threads. Do
not
apply
compound
to
hose
connections. Damage to equipment
may result.
(3)

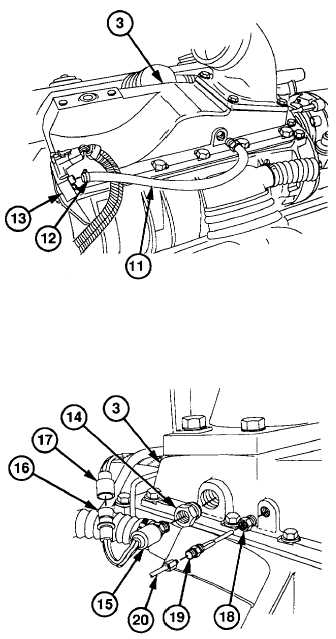

Coat threads of hose (11) with pipe
sealing compound.
(4)
Install clamp (12) and hose (11) on air
inlet housing (3) and turbo boost sensor
(13).
(5)
Coat threads of fitting (14) and STE/ICE
sensor (15) with pipe thread sealing
compound.
(6)
Install fitting (14) and STE/ICE sensor (15)
on air inlet housing (3).
(7)
Connect
STE/ICE
connector
(16)
to
STE/ICE engine wire harness (17).
(8)
Coat threads of reducer (18) and atomizer
(19) with pipe thread sealing compound.
(9)
Install reducer (18) on air inlet housing (3).
(10)
Install atomizer (19) on reducer (18).
(11)
Install ether line (20) on atomizer (19).
d.
Follow-On Maintenance
Install turbocharger (para 4-11).
4-18.1 (4-18.2 blank)
|
