4-5. AIR INLET HOUSING/ADAPTER REPLACEMENT
This task covers:
a. Removal
c. Installation
b. Cleaning/Inspection
d. Follow-On Maintenance
INITIAL SETUP
Equipment Conditions
Materials/Parts
Turbocharger removed (para 4-11).
Adhesive-Sealant (Item 6, Appendix B)
Compound, Sealing, Pipe Thread (Item 28,
Tools and Special Tools
Appendix B)
Tool Kit, Genl Mech (Item 202, Appendix E)
Solvent, Dry Cleaning (Item 54, Appendix B)
Compressor Unit, Air (Item 24, Appendix E)
Gasket (Item 67, Appendix F)
Goggles, Industrial (Item 57, Appendix E)
Lockwashers (10) (Item 121, Appendix F)
Wrench, Open-End, 1 In. and 1-1/8 In.,
Packings, Preformed (2) (Item 189, Appendix F)
(Item 226, Appendix E)
Wrench, Torque, 0-175 Lb-Ft (Item 236,
Appendix E)
Wrench, Torque, 0-300 Lb-In. (Item 235,
Appendix E)

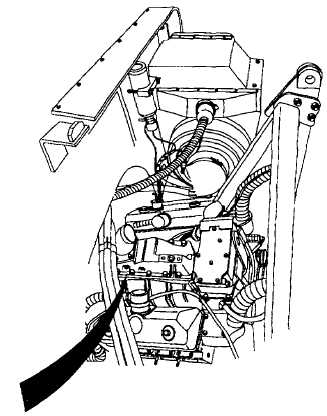

a.
Removal
(1)

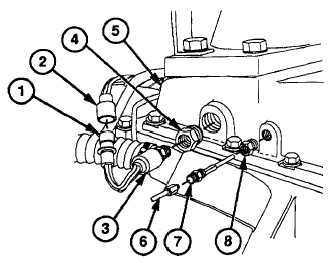

Disconnect STE/ICE connector (1) from
STE/ICE engine wire harness (2).
(2)
Remove STE/ICE sensor (3) and fitting (4)
from air inlet housing (5).
(3)
Remove ether line (6) from atomizer (7).
(4)
Remove atomizer (7) from reducer (8).
(5)
Remove reducer (8) from air inlet housing
(5).
4-15
|
