TM 9-2320-360-34-1
4-4. FUEL SUPPLY PUMP/COUPLING FORK REPAIR (CONT)
WARNING
Pipe thread sealing compound can
burn easily, can give off harmful
vapors, and is harmful to skin and
clothing. To avoid injury or death,
keep away from open fire and use in
well-ventilated area. If pipe thread
sealing compound gets on skin or
clothing, wash immediately with soap
and water.
CAUTION
Use pipe thread sealing compound
sparingly only on pipe threads. Do
not
apply
compound
to
hose
connections. Damage to equipment
may result.
(13)

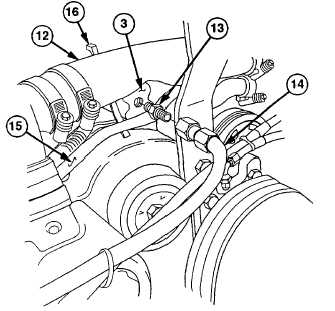

Coat threads of fitting (13) with pipe
thread sealing compound.
(14)
Install fitting (13) on fuel supply pump (3).
(15)
Install fuel hose (14) on fitting (13).
NOTE
Plastic
cable
ties
should
be
positioned
in
locations
marked
during removal.
(16)
Secure hose (15) to crossover tube (12)
with plastic cable ties (16) as required.
f.
Follow-On Maintenance
(1)
Install
electronic
control
module
(TM 9-2320-360-20).
(2)
Start engine (TM 9-2320-360-10).
(3)
Check for leaks.
(4)
Shut off engine (TM 9-2320-360-10).
4-14
|
