TM 9-2320-360-34-1
4-5. AIR INLET HOUSING/ADAPTER REPLACEMENT (CONT)
(6)

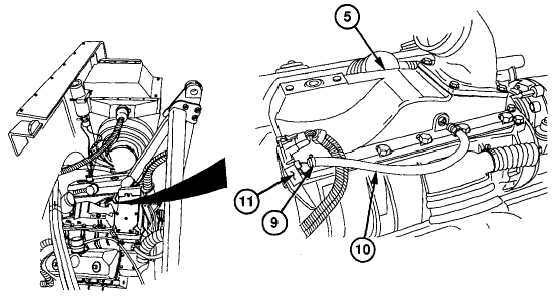

Remove clamp (9) and hose (10) from
turbo boost sensor (11) and air inlet
housing (5).
(6.1)

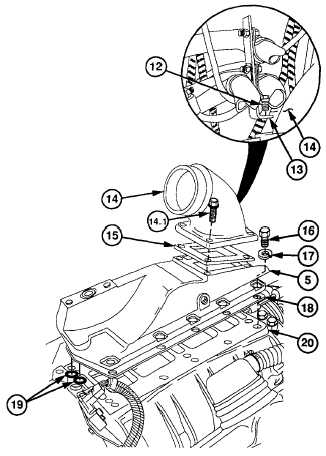

Remove screw (12) and bracket (13) from
adapter (14).
(7)
Remove three screws (14.1), adapter (14),
and gasket (15) from air inlet housing (5).
Discard gasket.
NOTE
Gently strike air inlet housing with
soft-faced mallet to break free from
blower.
(8)
Remove 10 screws (16), lockwashers
(17), air inlet housing (5), gasket (18), and
2 preformed packings (19) from blower
(20). Discard lockwashers, gasket, and
preformed packings.
4-16
|
